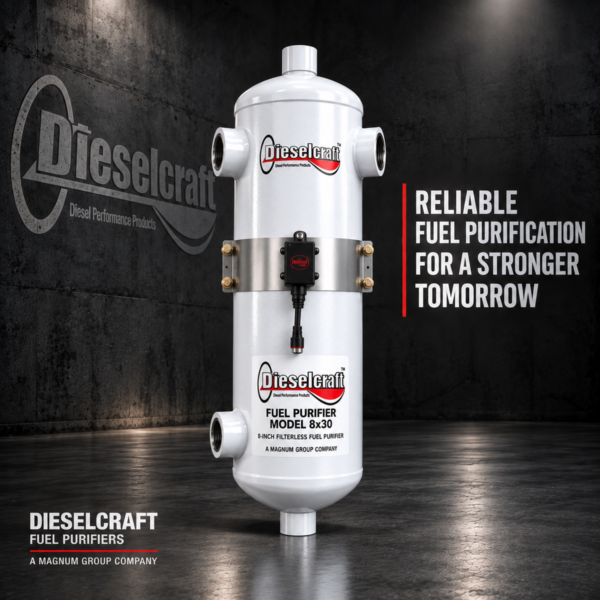

A one-step unit that separates free water and heavy contamination before fuel reaches the engine filtration system – without a replaceable, changeable, or cleanable filter element. Cleaner fuel at the engine reduces bacterial growth, cuts filter clogging, and extends maintenance intervals.
Best Fit
Stationary diesel pumps, gen sets, locomotives, fuel docks and equipment; stated engine range 1,200–2,000 HP.

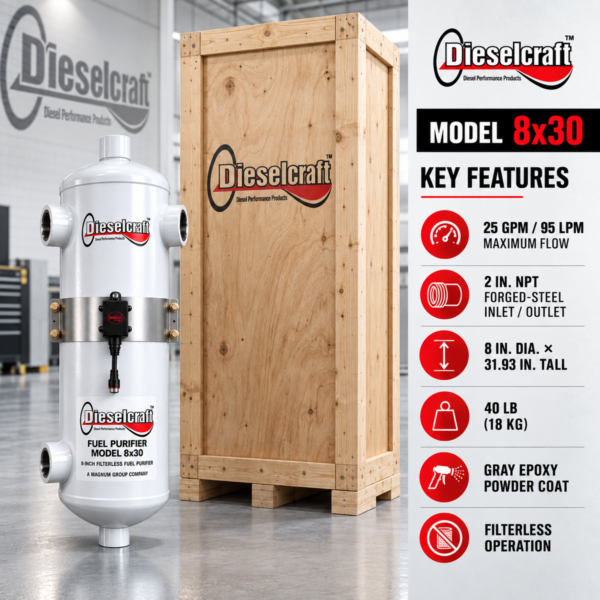

Specifications
| Maximum flow | 25 GPM / 95 LPM (1,500 GPH) |

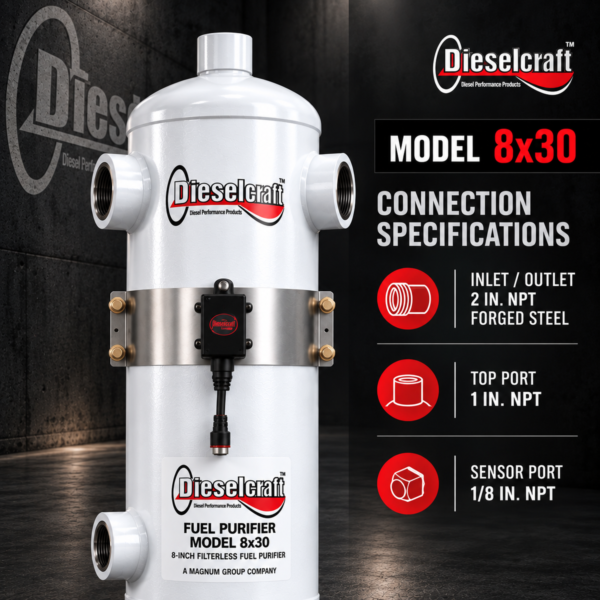

| Inlet / outlet | 2 in. NPT forged steel |
| Diameter | 8 in. / 203 mm |
| Overall height | 31.93 in. |
| Gross weight | 40 lb / 18 kg |
| Finish | Gray epoxy powder coat |

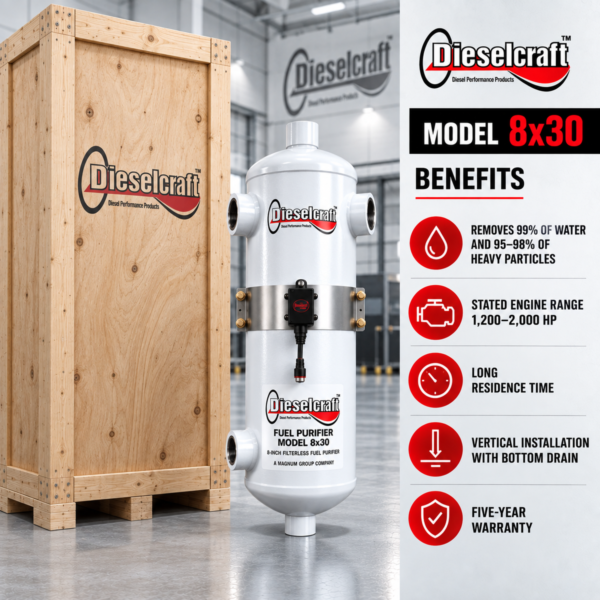

Includes mounting strap, 06-5 water sensor and drain valve. Filterless operation, vertical installation, bottom drain, five-year warranty. Removes 99% of water and 95–98% of heavy particles.
Not for use with gasoline.
