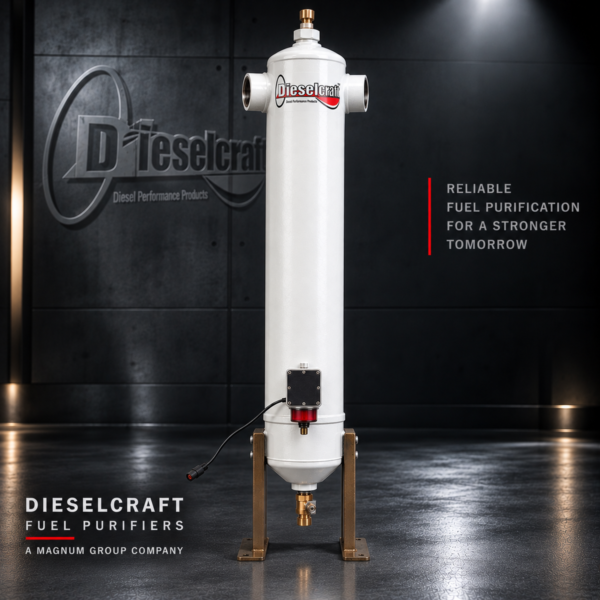

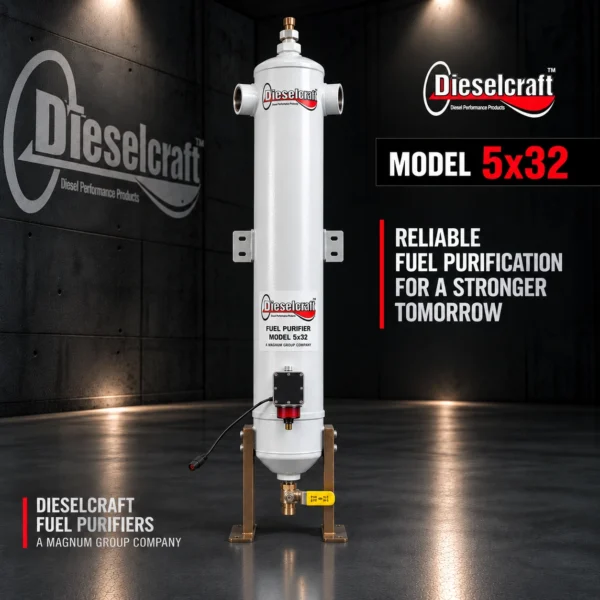

Part of Dieselcraft’s 5-inch fuel purifier family. Uses long residence time and proprietary media to separate free water and heavy contamination before fuel reaches the engine filtration system – with no replaceable filter element.
Best Fit
Pumps rated 8–18 GPM; stated engine range 600–1,500 HP.

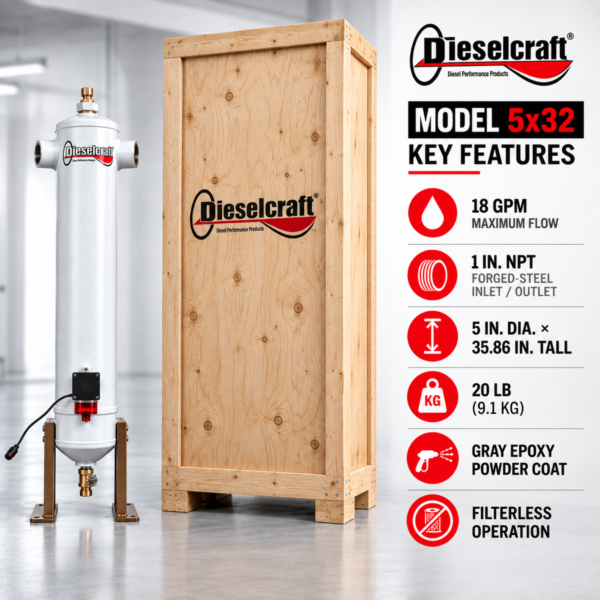

Specifications
| Maximum flow | 18 GPM |

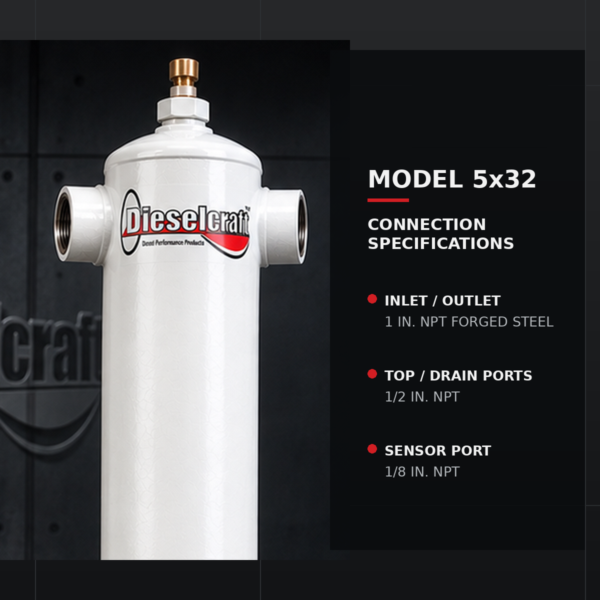

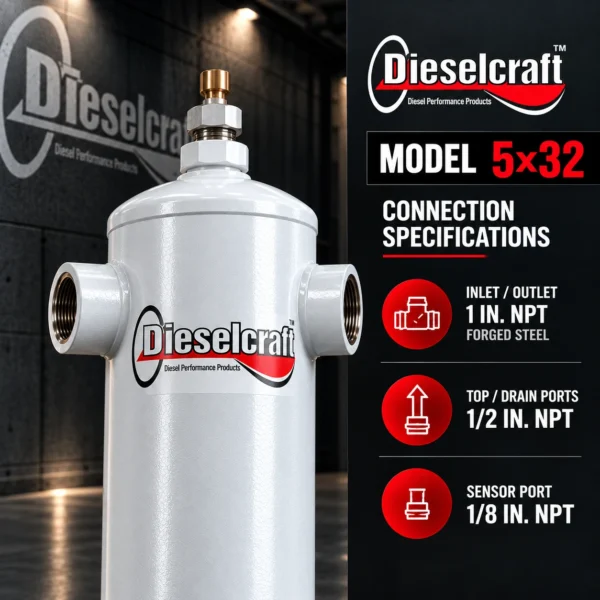

| Inlet / outlet | 1 in. NPT forged steel |
| Size | 5 in. dia. x 35.86 in. tall |
| Gross weight | 20 lb (9.1 kg) |
| Finish | Gray epoxy powder coat |

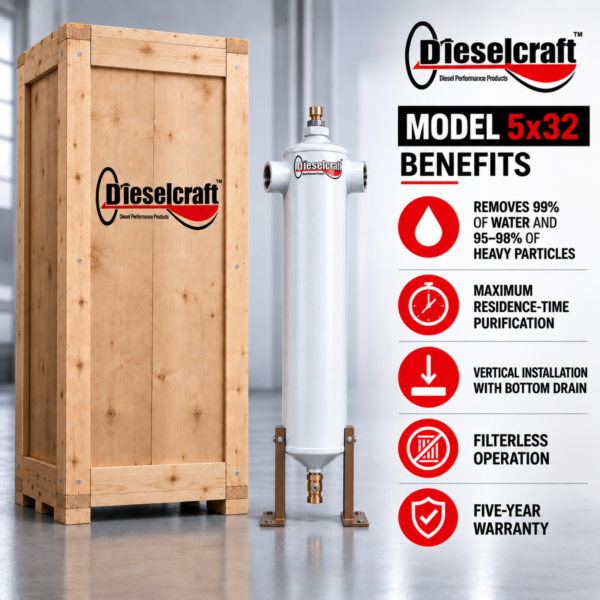

Common Features
- Filterless operation, vertical installation, bottom drain
- Five-year warranty
- Removes 99% of water and 95–98% of heavy particles
