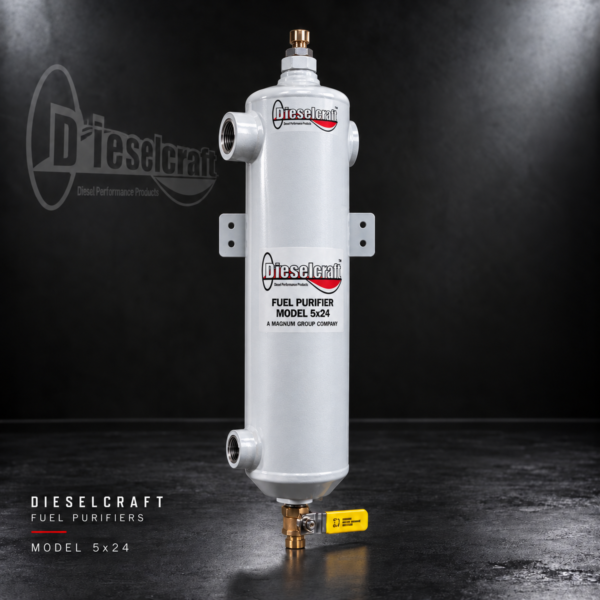

Dieselcraft 5×24 Fuel Purifier – Mid-Length

Filterless fuel purifier, 20 GPM maximum flow. Best fit for circulation pumps rated 4–7 GPM (600–1,500 HP range). Removes 99% of water and 95–98% of heavy particles.

SKU: 5x24 Category: Brand:
Guaranteed Safe Checkout

Part of Dieselcraft’s 5-inch fuel purifier family. Uses long residence time and proprietary media to separate free water and heavy contamination before fuel reaches the engine filtration system – with no replaceable filter element.

Best Fit

Circulation pumps rated 4–7 GPM; stated engine range 600–1,500 HP.

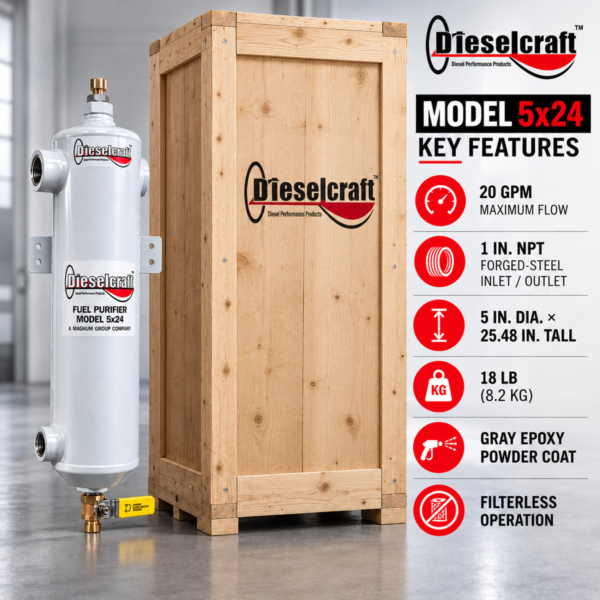

Specifications

Maximum flow 20 GPM

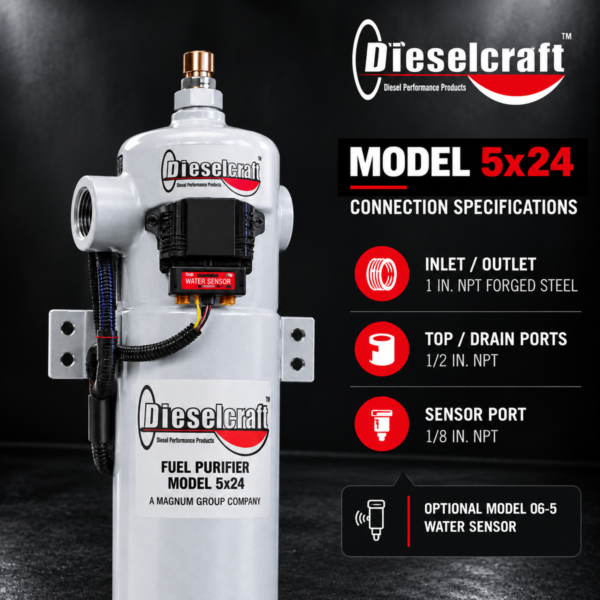

Inlet / outlet 1 in. NPT forged steel
Size 5 in. dia. x 25.48 in. tall
Gross weight 18 lb (8.2 kg)
Finish Gray epoxy powder coat

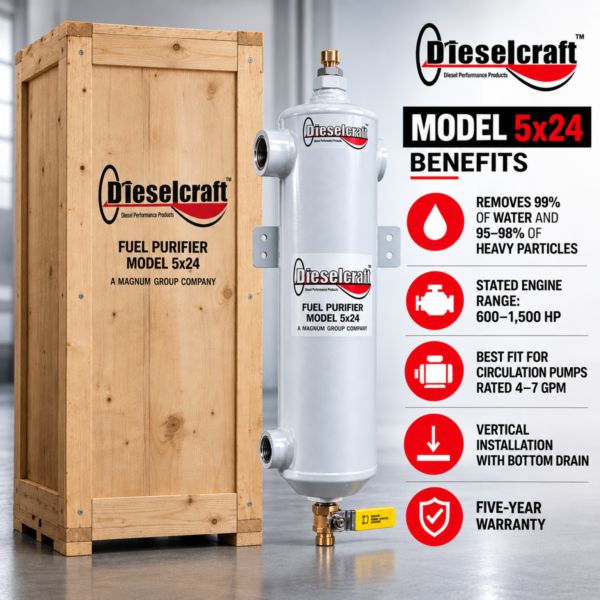

Common Features

  • Filterless operation, vertical installation, bottom drain
  • Five-year warranty
  • Removes 99% of water and 95–98% of heavy particles
