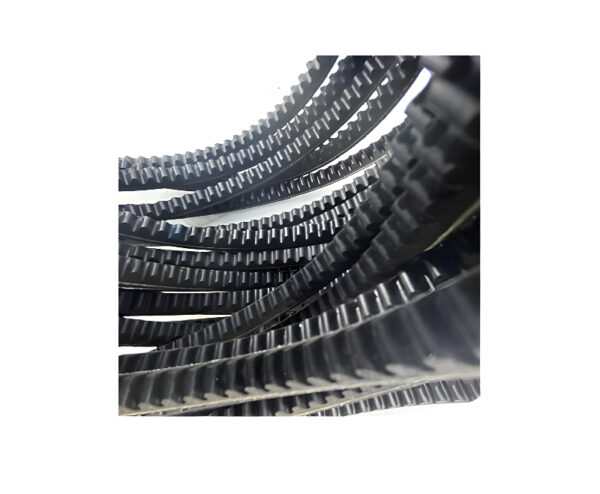

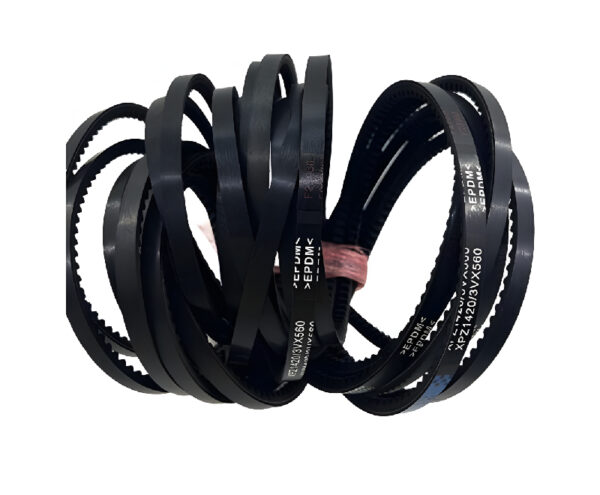

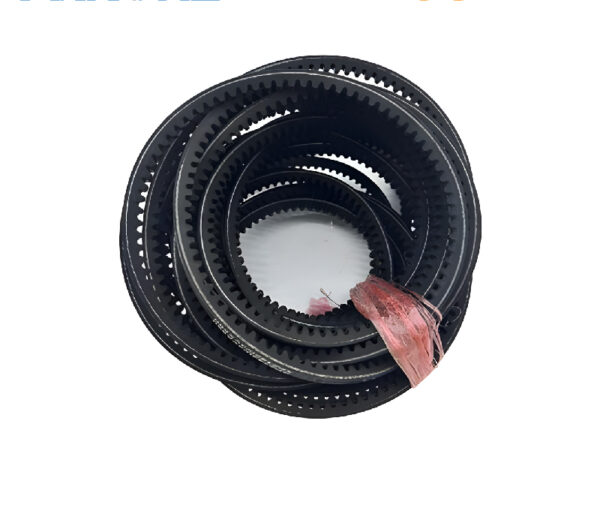

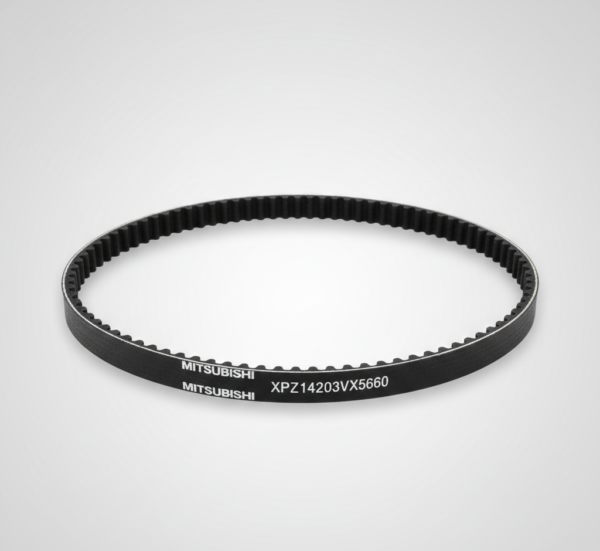

Escalator Drive Belt (XPZ14203VX560)

1. Model Parsing and Possible Product Category

• XPZ1420:
  The “XPZ” prefix is commonly used in V-belt (V-belt) specifications. For example, in the European standard (ISO 4184), V-belts are classified into XPZ, XPA, XPB, XPC, etc., where “XPZ” represents the smallest cross-sectional size in the extra-light duty series. The number “1420” likely indicates the effective length of the belt in millimeters (mm), i.e., the effective circumference of the belt is approximately 1420 mm.
• 3VX560:
  The “3VX” may correspond to the American standard (RMA/ISO 1082) V-belt series, where “3V” denotes the cross-sectional type (similar to the European XPZ in size but with different naming conventions), and “560” typically represents the nominal length in inches (in). Converting 560 inches to millimeters: 1 inch ≈ 25.4 mm, so 560 × 25.4 ≈ 1422.4 mm, which is close to the 1420 mm in “XPZ1420”, suggesting that the two may be equivalent specifications under different standards.

• 2. Detailed Technical Parameters and Application Scenarios

  (1) Technical Parameters

  Parameter	Description
  Cross-sectional Type	– XPZ (European standard): Trapezoidal cross-section, top width ~8.5 mm, height ~5.5 mm. – 3VX (American standard): Similar to XPZ, top width ~9.5 mm, height ~6 mm.
  Effective Length	– XPZ1420: Effective circumference ≈1420 mm. – 3VX560: Nominal length ≈560 in (≈1422.4 mm), with the actual effective length slightly shorter due to standard differences.
  Power Transmission Capacity	Suitable for transmitting small to medium power, typically used in low-speed to medium-speed drives (rotational speed ≤4000 rpm).
  Tensile Strength	Made of rubber, fabric, and tensile cords (such as aramid or polyester), with a breaking strength of ~500-800 N (specific values depend on the manufacturer).

  (2) Application Scenarios

  • Industrial Machinery: Used in conveyors, fans, pumps, compressors, and other equipment that require belt-driven power transmission.
  • Household Appliances: Such as washing machines, air conditioners, or small mechanical devices (though industrial applications are more common).
  • Automotive Accessories: Occasionally used in auxiliary systems of vehicles (e.g., generator or air conditioning compressor drives), but automotive belts often have different standards (e.g., “PK” series).

  3. Purchase and Replacement Considerations

  • Compatibility:
    • Ensure the pulley groove matches the belt cross-section (e.g., an XPZ belt requires an XPZ-compatible pulley).
    • Check the center distance and tensioning mechanism of the drive system to avoid issues like slippage or excessive wear caused by incorrect length.
  • Brand and Quality:
    Well-known manufacturers include Gates, ContiTech, Mitsuboshi, etc. High-quality belts offer better heat resistance, wear resistance, and service life (typically 1-3 years under normal conditions).
