High Voltage Strip TPI-02-0104

High Voltage Strip TPI-02-0104 TPI-02-0104-K2 TPI-02-0609 E229877 TPL-06-5003

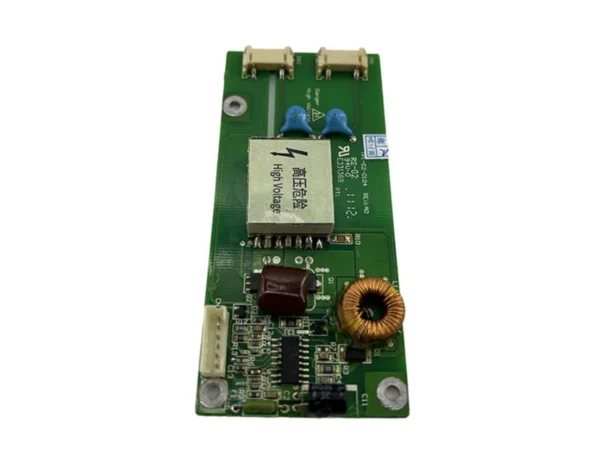

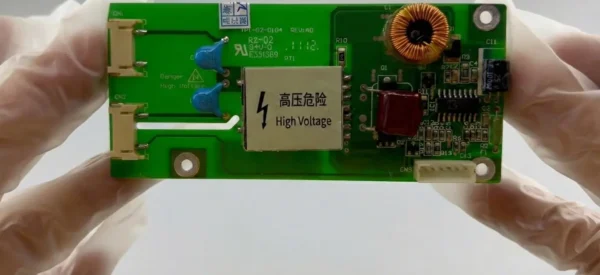

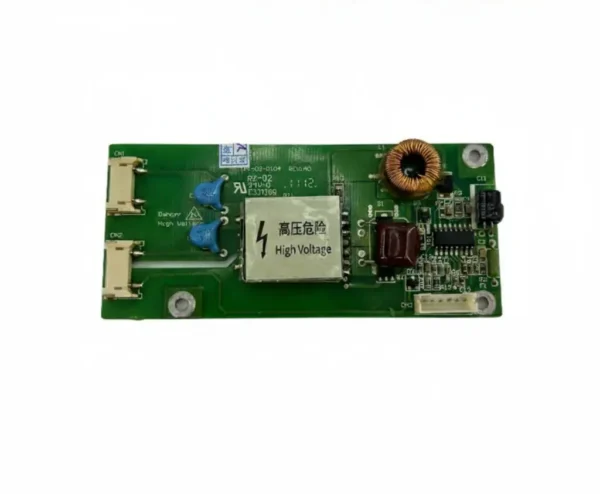

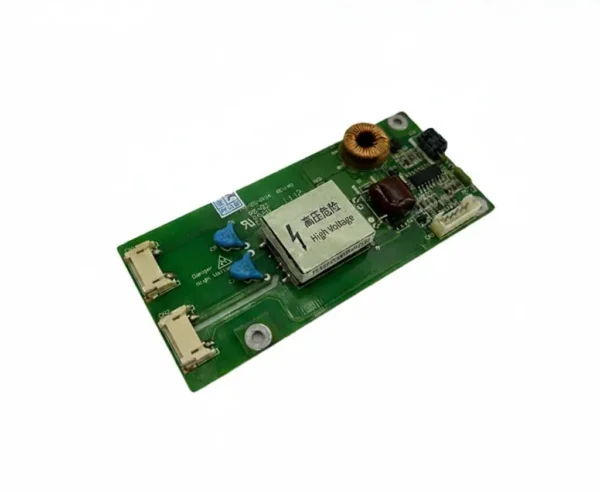

The TPI-02-0104 High-Voltage Strip is a reliable power conversion device widely used in liquid crystal display (LCD) systems and elevator-related applications. Designed for stable performance and long-term operation, this module provides efficient voltage conversion, precise brightness control, and built-in protection features.

Basic Parameters

• Input Voltage: 10–13.2V DC
• Output Voltage: 12V
• Output Power: 18W
• Transistor Connection Mode: Single-ended type
• Modulation Mode: Pulse Width Modulation (PWM)

The PWM modulation mode ensures high efficiency, stable output, and precise control of power delivery, making the unit suitable for continuous and demanding operating environments.

Product Specifications

Functional Roles

• Voltage Conversion:
  Converts low DC input voltage (10–13.2V) into high AC voltage required to power LCD backlight tubes.
• Brightness Adjustment:
  Uses PWM control to adjust output duty cycle, enabling flexible brightness control for different display environments.
• Protection Functions:
  Built-in overvoltage, overcurrent, and short-circuit protection to prevent damage to backlight tubes and circuit components.

Application Fields

• Liquid Crystal Displays:
  Suitable for computer monitors, LCD TVs, tablets, and other display systems requiring stable backlight power.
• Industrial Control Systems:
  Used in HMIs, touch screens, and industrial display panels.
• Medical Equipment:
  Applied in medical monitors, ultrasound machines, and diagnostic devices to ensure reliable display performance.
