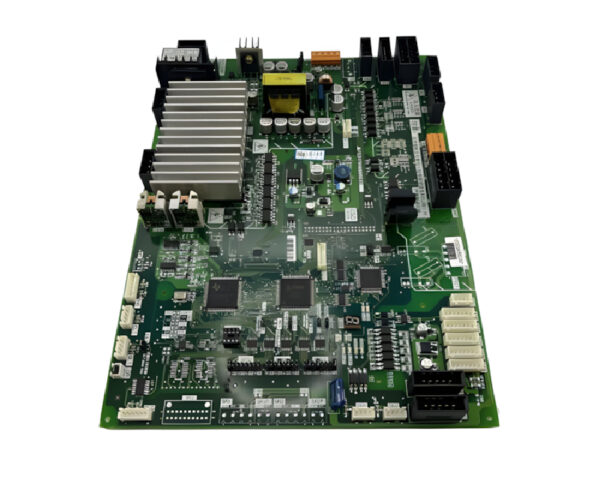

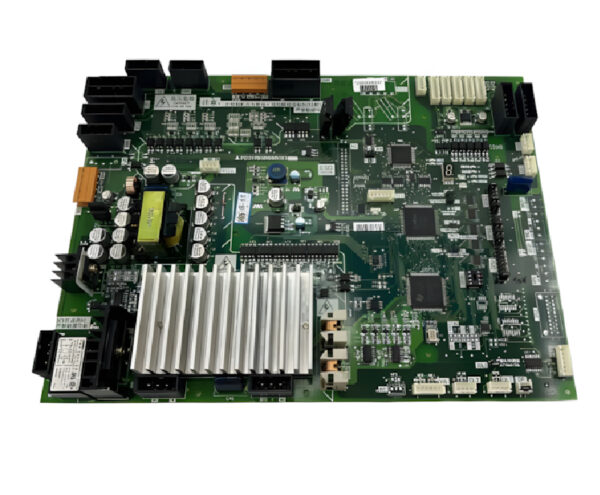

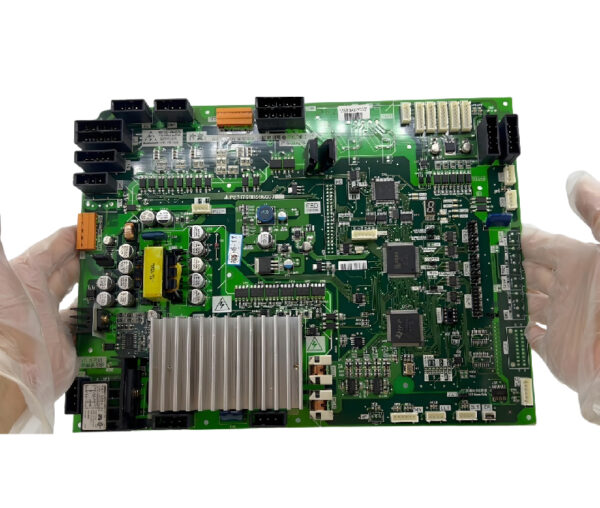

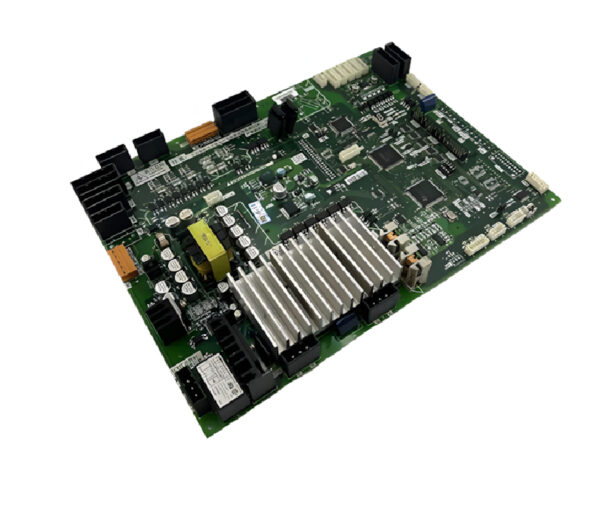

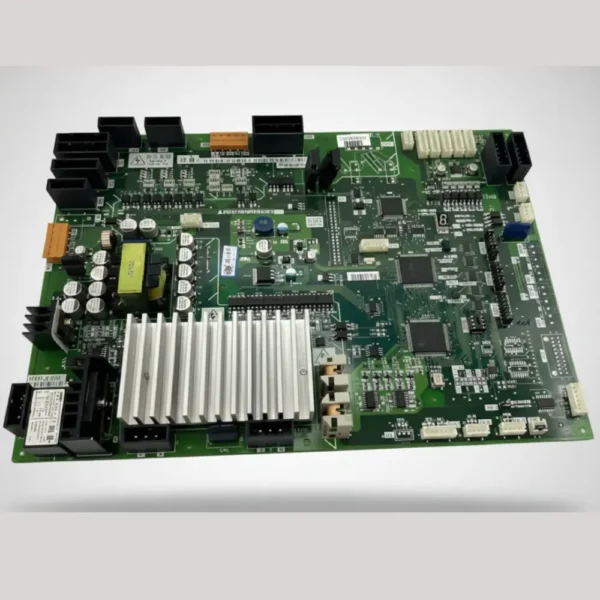

Elevator Main Control CPU Board

Elevator accessories control panel brand new original SIO BOARD V2.0 ((DWG NO204C2305)

Important functions include the following aspects:
Communication function.
Implementing internal communication of the group control system: As a key component of the group control system, it is responsible for coordinating the information transmission between the elevators in the elevator group and between other control devices to ensure that the system can operate as a whole and efficiently. For example, it can accurately transmit the call signal in the car, the call signal on the floor of the station, etc. to the central processor of the group control system, and simultaneously transmit the control instructions of the central processor to the controller of each elevator.
Support for multiple communication protocols: It is compatible with multiple communication protocols and can communicate with elevator equipment and peripheral systems of different brands and models, enabling various devices to work together smoothly, which is convenient for system integration and expansion.
Signal Processing Function
Input signal processing: Receives sensor signals from various parts of the elevator, such as car position sensor, door machine status sensor, weight sensor, etc., filters, amplifies, encodes and processes these signals, and converts them into digital signals so that the microprocessor of the group control system can recognize and process them, and provide accurate data support for the system to make correct control decisions.
Output signal control: According to the control instructions of the group control system, corresponding control signals are generated to control various elevator drives, such as car drivers, door lock relays, lighting fixtures, etc., to achieve precise control of the elevator operation, door opening and closing, floor display and other functions.
Group control dispatcher function
Optimized elevator dispatching algorithm: It can calculate and distribute elevator tasks in real time according to multiple factors such as the current position, traveling direction, car load, and ground station call elevator position, so as to optimize the operation efficiency of the elevator group and reduce the waiting time of passengers.
Traffic pattern recognition and adaptation: It can recognize different traffic patterns, such as peak, off-peak, lunch, etc., and automatically adjust the elevator operation strategy to adapt to different traffic conditions. For example, during peak hours, priority is given to responding to collective calls for up or down stations to improve transportation efficiency.
Fault diagnosis and protection
Real-time monitoring and diagnosis: Continuously monitor the running status of the elevator system, and timely detect possible failures or abnormal conditions in the system by analyzing various sensor signals and equipment operating parameters. Once a fault is detected, an alarm will be issued immediately, and the fault information will be uploaded to the monitoring center. Corresponding protective measures will be taken to prevent further spread of the fault.
Safety protection mechanism: It has various safety protection functions, such as overload protection, overspeed protection, door lock protection, etc. When the elevator is detected to be overloaded, the elevator will be prohibited from operating and an alarm will be issued; When the elevator exceeds the speed limit, the safety brake will be activated to stop the elevator movement to ensure the safety of passengers.
System Configuration and Control Function
Parameter Setting and Adjustment: Through dedicated interfaces or software tools, technicians can set and adjust the parameters of the group control panel, such as traveling speed, acceleration, deceleration, leveling accuracy, and other elevator parameters, to meet the needs of different buildings and users. Parameters such as the operating mode of the group control system and elevator priority can also be set to achieve flexible management of the elevator group.
Equipment Management and Monitoring: It can manage and monitor each elevator equipment connected to the group control system, including viewing the operating status, version information, and fault records. This is convenient for technicians to maintain and manage the equipment and improve the system’s maintenance and reliability.
