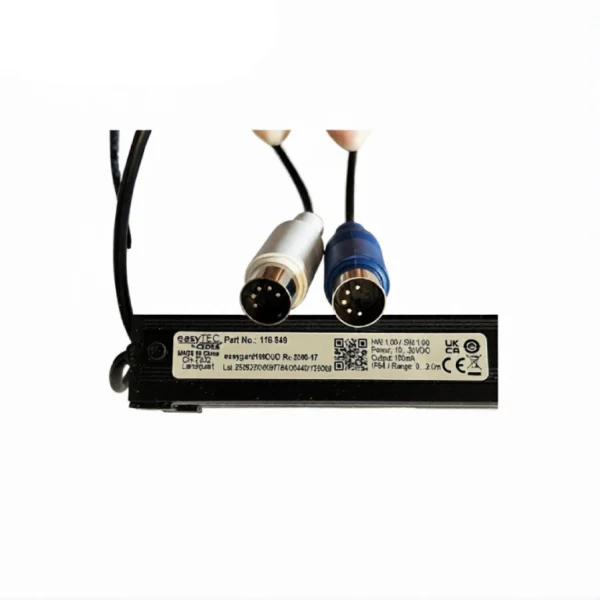

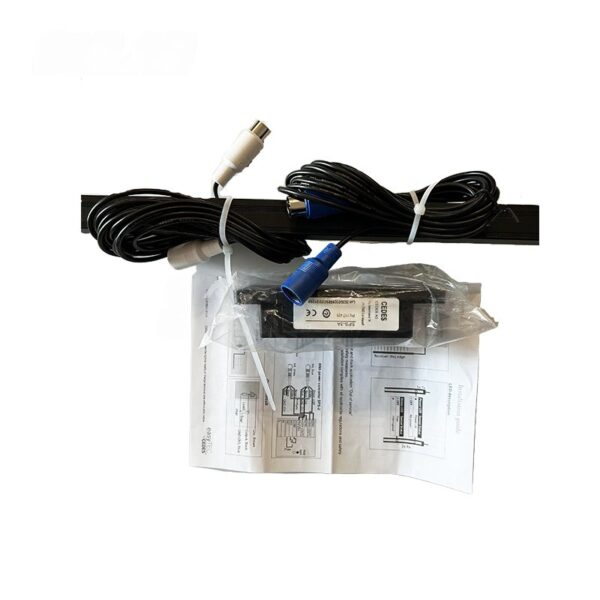

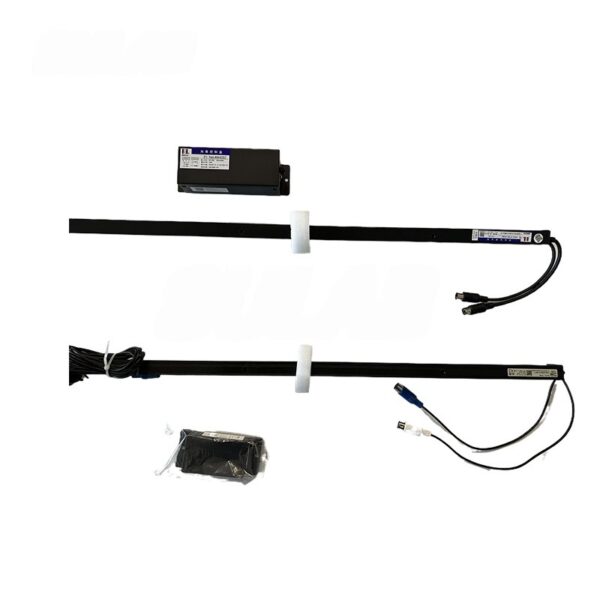

Cedes Easygard 100DUD RX/TX-2000-17 Elevator Light Curtain
Product Overview :
Elevator infrared safety light curtain designed for dynamic/static installation in center-opening and side-opening elevator doors.
Key Specifications :
Optical Parameters
- Detection area: 0-3m
- Wavelength: Infrared 940nm
- Light resistance intensity: 100,000Lux
Mechanical Parameters
- Dimensions: 11 × 24.5 × 2,000mm
- Housing material: Aluminum alloy with black powder coating
- Protection level: IP54
- Operating temperature: -20°C to +60°C
- Storage temperature: -40°C to +75°C
Electronic Parameters
- Power supply voltage: USP 10-30 VDC
- Current consumption: <50mA at 24VDC (no load)
- Output types: Solid-state relay or push-pull
- Standard response time: <100ms
Product Attributes :
| Brand | Cedes |
| Description | Universal Light Curtain |
| Model | Easygard 100DUD RX/TX-2000-17 |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Applicable | Elevator |
| Packaging | Carton, Wooden case, Pallet |
| Warranty | One year |
| Payment Methods | Bank transfer, Western Union, Alibaba, PayPal |
Additional Features :
- Multiple cross beams for reliable detection
- Continuous scanning until elevator door is completely closed
- Easy installation with different cost-optimized models
- Optional power converter available
- Fixed cable length: 3.8m (3.3m with M8 plug)
- M8 interface connections (4-pin transmitter, 6-pin receiver)
